Kit RapidMounting EVO! – COMPLETE (TMKITCMP)
Patented TopMax Elaborazioni system. The RapidMounting EVO! Kit – COMPLETE is designed for the extraction/assembly of the bushings in the GearBox plates, for the boring of the bushings seats and to change the size of the 9mm bushings seat. As the RapidMounting EVO! Kit was designed on our specific dimensions, we strongly suggest the use of our bushings sets after any kind of operation made with the RapidMounting EVO! kit. [MORE DETAILS]
Try with others.
Please NOTE: The sharpening of both setting bore cutter and reaming cutter for counterblock may be reduced depending on the composition (materials and additives) of the GearBox of different brands. To maximize the working life of the cutters, we recommend to watch all the tutorials relating to the use/maintenance of the Kit and to not force the cut, if during the operation, you realize that too much force is needed to complete the job.

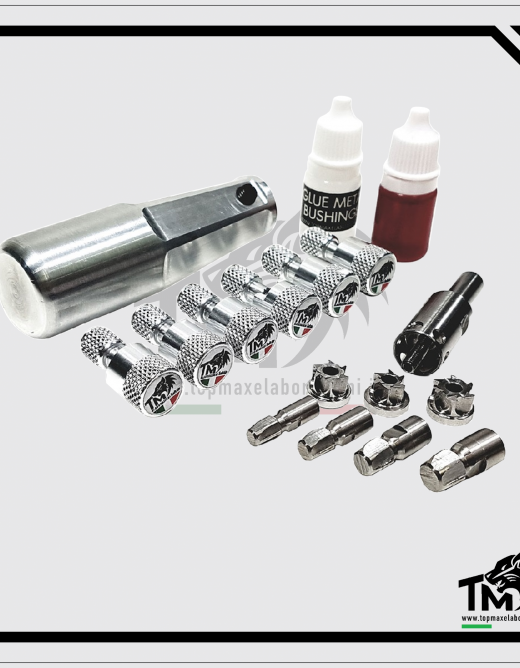

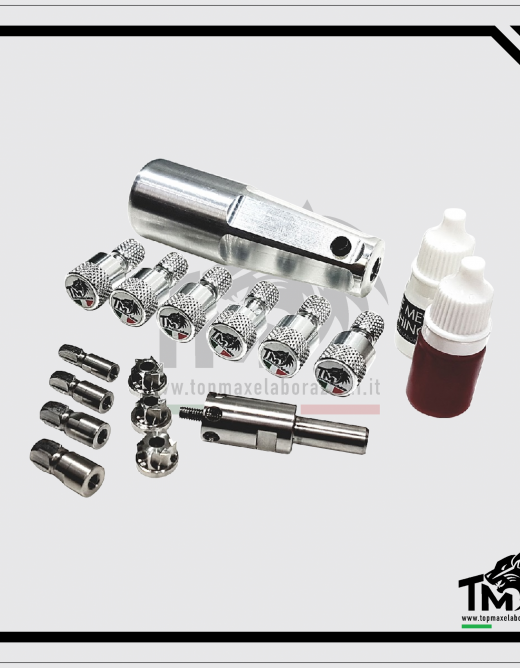

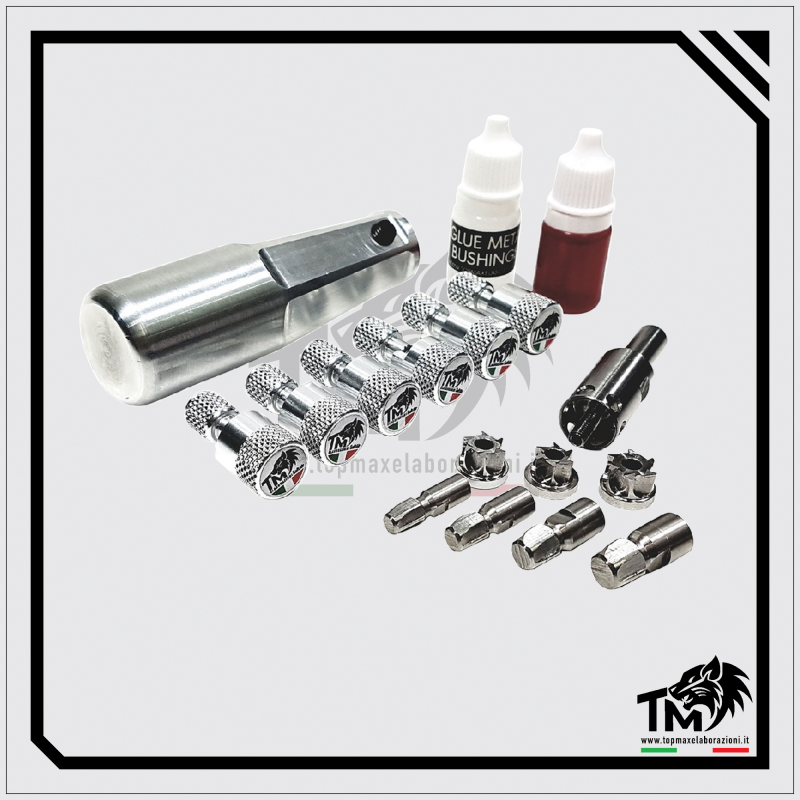

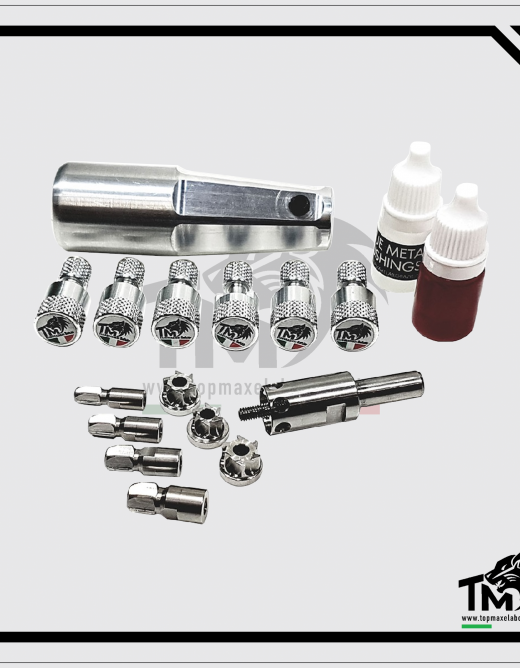

The RapidMouning EVO! – COMPLETE Kit consists of:
- n°6 complete knobs for the extraction/assembly of the bushings (5 standard knob and 1 knob dedicated for the bushing under the selector plate),
- n°6 1,00mm shimmings for the knobs,
- n°1 specific glue dispenser for fixing the bushings (we recommend storing the bottle at temperatures between 5°C and 12°C),
- n°1 handle for manual processing,
- n°1 oil dispenser for drilling, boring and lubrification of the bushings seat,
- n°1 cutter holder insert,
- n°1 6mm and 7mm reaming cutter for counterblock bushings (the counterblock for 6mm and 7mm bushings as the same dimension),
- n°1 8mm reaming cutter for counterblock bushings,
- n°1 9mm reaming cutter for counterblock bushings,
- n°1 6mm setting bore cutter for bushings,
- n°1 7mm setting bore cutter for bushings,
- n°1 8mm setting bore cutter for bushings,
- n°1 9mm setting bore cutter for bushings.
The complete reamers can be mounted on the manual handle of the RapidMouning EVO! Kit, on pillar drills and on non-professional electric drills, but it’s always recommended to not exceed 280 RPM to carry out a safe operation. To avoid excessive overheating, we also recommend applying a few drops of mechanical oil on the affected part and constantly clearing the seat from processing residues. The use of the Kit requires a bit of manual skills, so we recommend to view the tutorials you can find on our YouTube page. TopMax Elaborazioni is not held responsible for any improper use and/or improper assembly, resulting in damage and/or ruptures at the and/or replica malfunctions.
